Description

SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

Cylinders: 1

Dimensions (L x W x H) (mm): 26*12*8.5cm

Engine: 2 Stroke

Engine Capacity: 1 – 2L

Engine Position: Outboard

Fuel Type: Gasoline

Hign-concerned Chemical: None

Origin: Mainland China

Description

With the characteristic foldable handle, the strong load-bearing capacity, and a brushless pure copper motor, this trolling motor is a great motor for a variety of applications. The foldable handle has two buttons to adjust the steering state and the machine can be 360° rotated, allowing for more comfortable steering. In addition, with the large LED display, you can see the voltage clearly and ensure electrical safety.

Key Features

Premium Material: This electric trolling motor uses high-quality metal materials, such as aluminum alloy, copper, and iron, with a spray painting process, making it high impact-resistance and solid, and can withstand freshwater and saltwater environments.

Strong Load-bearing Capacity: This trolling motor is suitable for boats with a maximum load-bearing capacity of 2756-3307 lbs, which is strong to use.

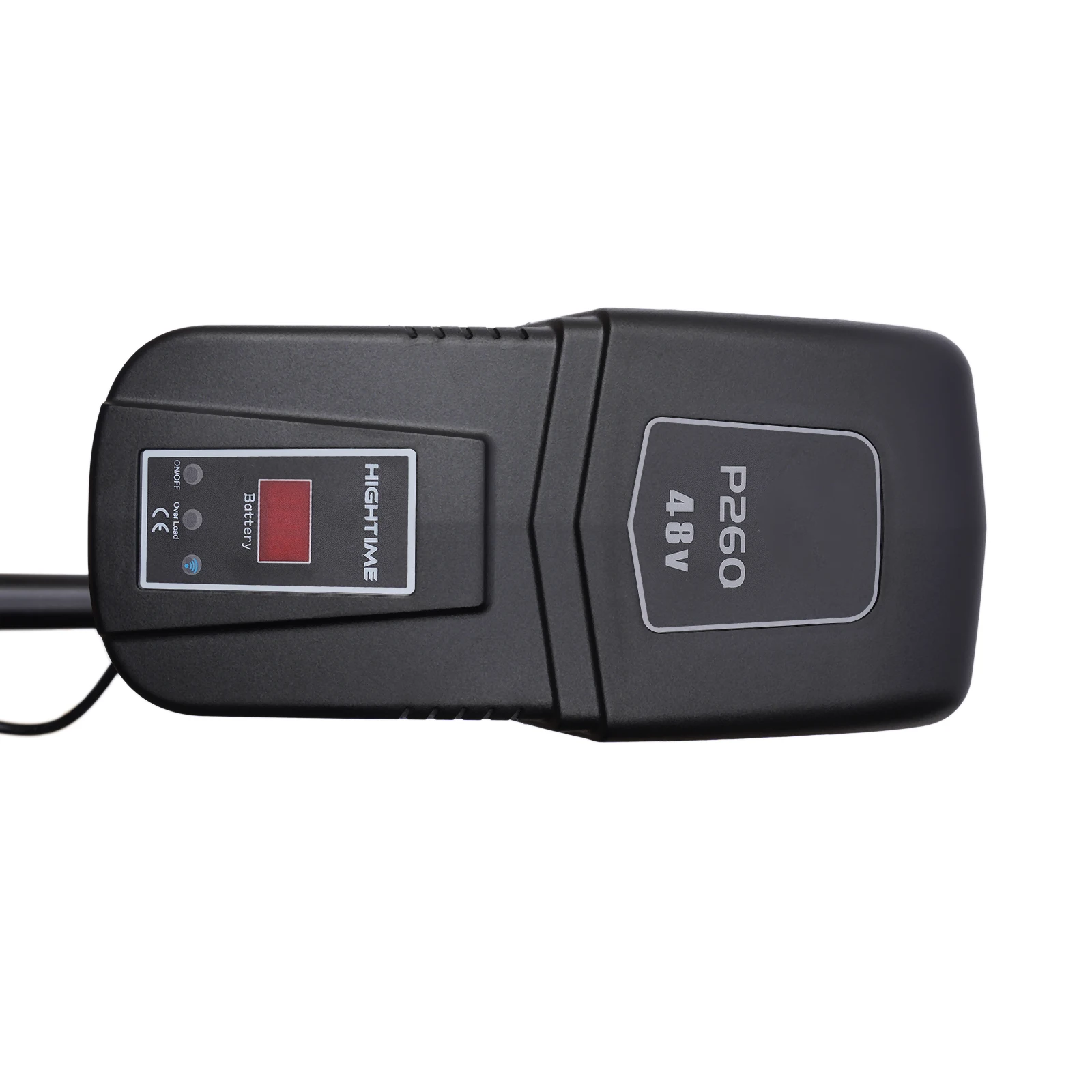

Large LED Display: This trolling motor has a large LED display that shows voltage information clearly, to prevent wrong battery connection. And you need to charge it when the voltage is below 36V.

High Efficiency:It adopts high-quality pure copper andbrushless motor with 1400W strong power output and 2300rpm high speed, so it can run efficiently on most ships, providing you with a fabulous riding experience.

Stepless Speed Regulation: The stepless speed regulation, without the abrupt sense of shifting gears, allows for a smooth and easily controlled ride.

Multi-gear Cruise: This product has two gears for infinitely variable transmission: a reverse gear and a forward gear, and you can also cruise at a constant speed so that you can enjoy different cruise experiences according to your needs.

360° Rotatable: This machine is 360° rotatable if you lightly loosing the screw, so you can adjust it according to your needs.

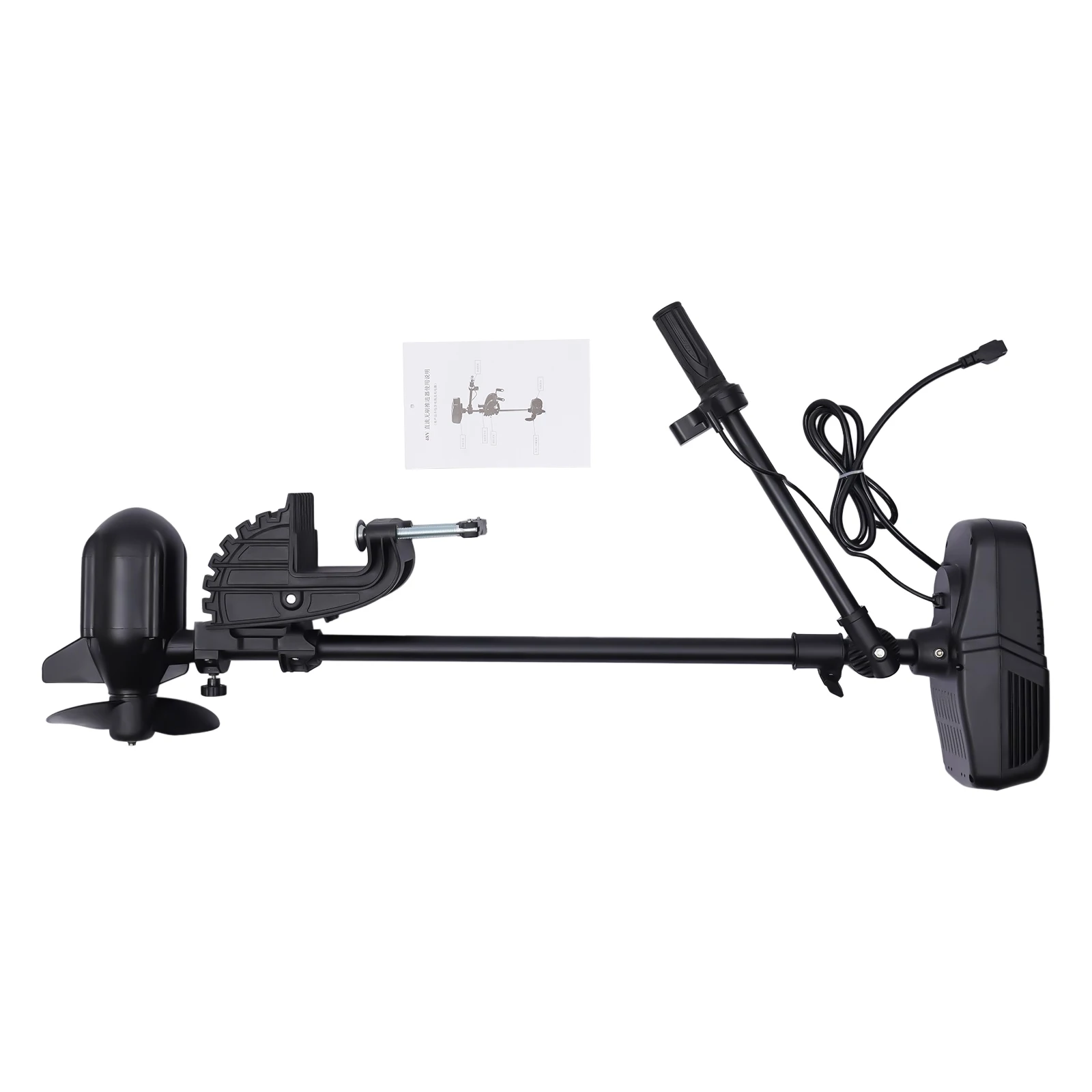

Foldable Design: You can adjust the angle of the handle 45 degrees upward and 90 degrees downward, making it suitable for various stern and standing or sitting operations, convenient and practical. And the handle can fold to parallel with the main stem, making it space-saving.

Self-protective Function: Adopting a brushless motor, this machine has a self-protective function that will stop operating if the pressure is below 36V or above 55V.

Acoustic Noise Optimization: This product adopts acoustic noise optimization, which can reduce noise, providing you with a comfortable user experience.

Buy with Confidence: We aim to provide high-quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Heat Dissipation Holes: There are many heat dissipation holes on the engine, which can help the motor dissipate heat and prolong its service life.

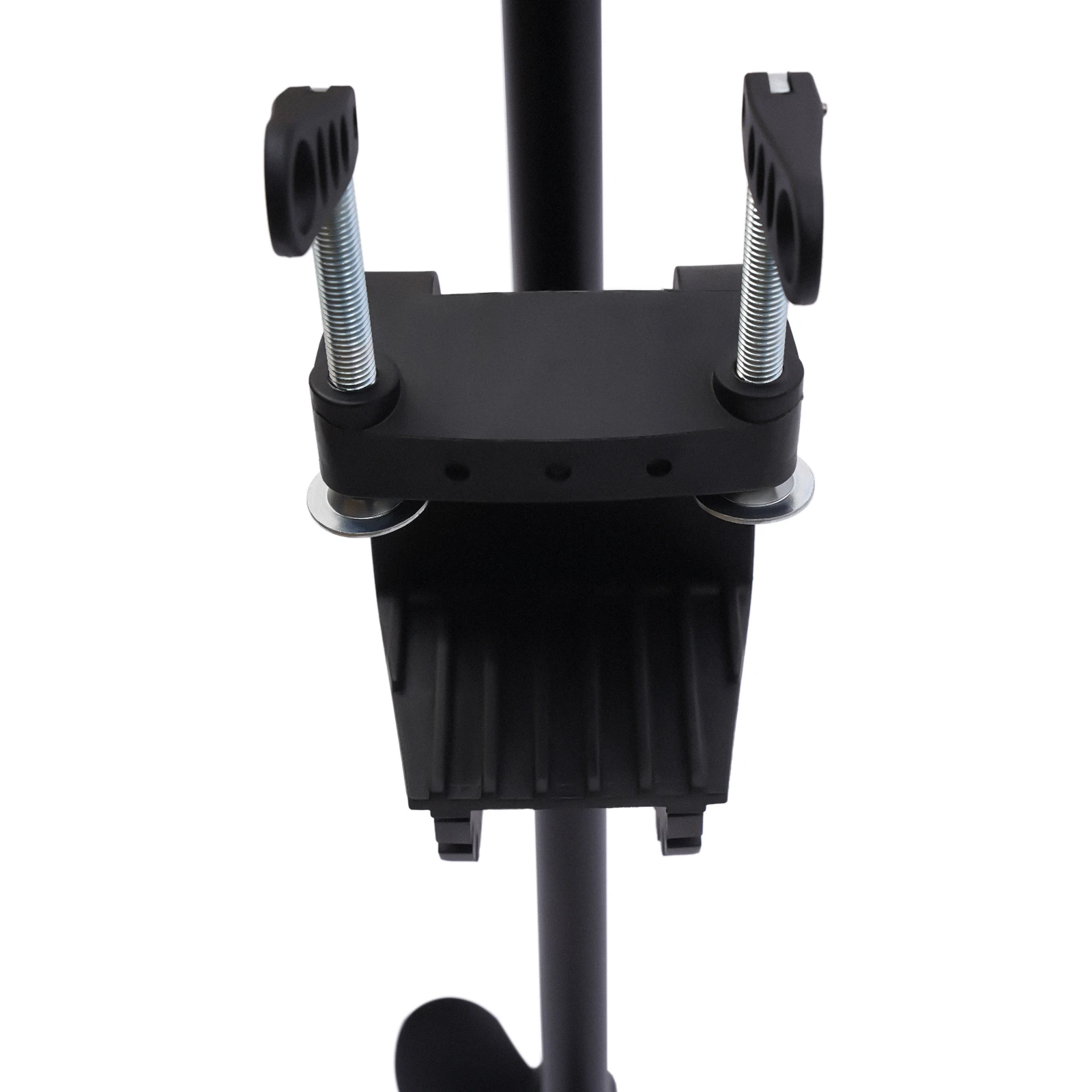

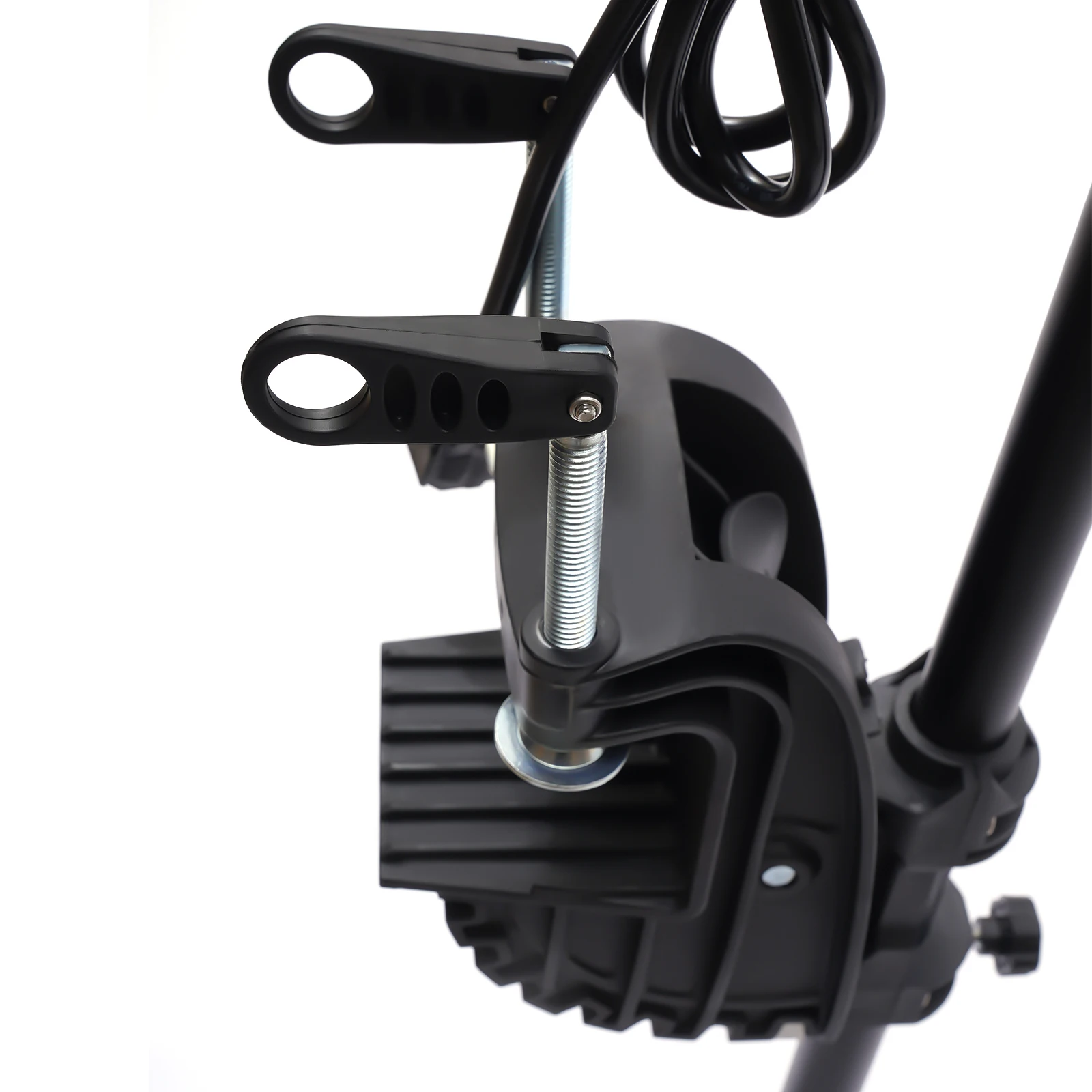

Clamping Device: We provide you with a clamping device that is used to tighten and secure the machine to prevent it from dropping.

Ergonomic Handle: Its handle conforms to the ergonomic design, making it comfortable to hold.

Powerful Propeller: The reinforced propeller with two blades is more durable and impact-resistant. It has a good anti-entanglement effect and can cut off water plants with high-speed rotation.

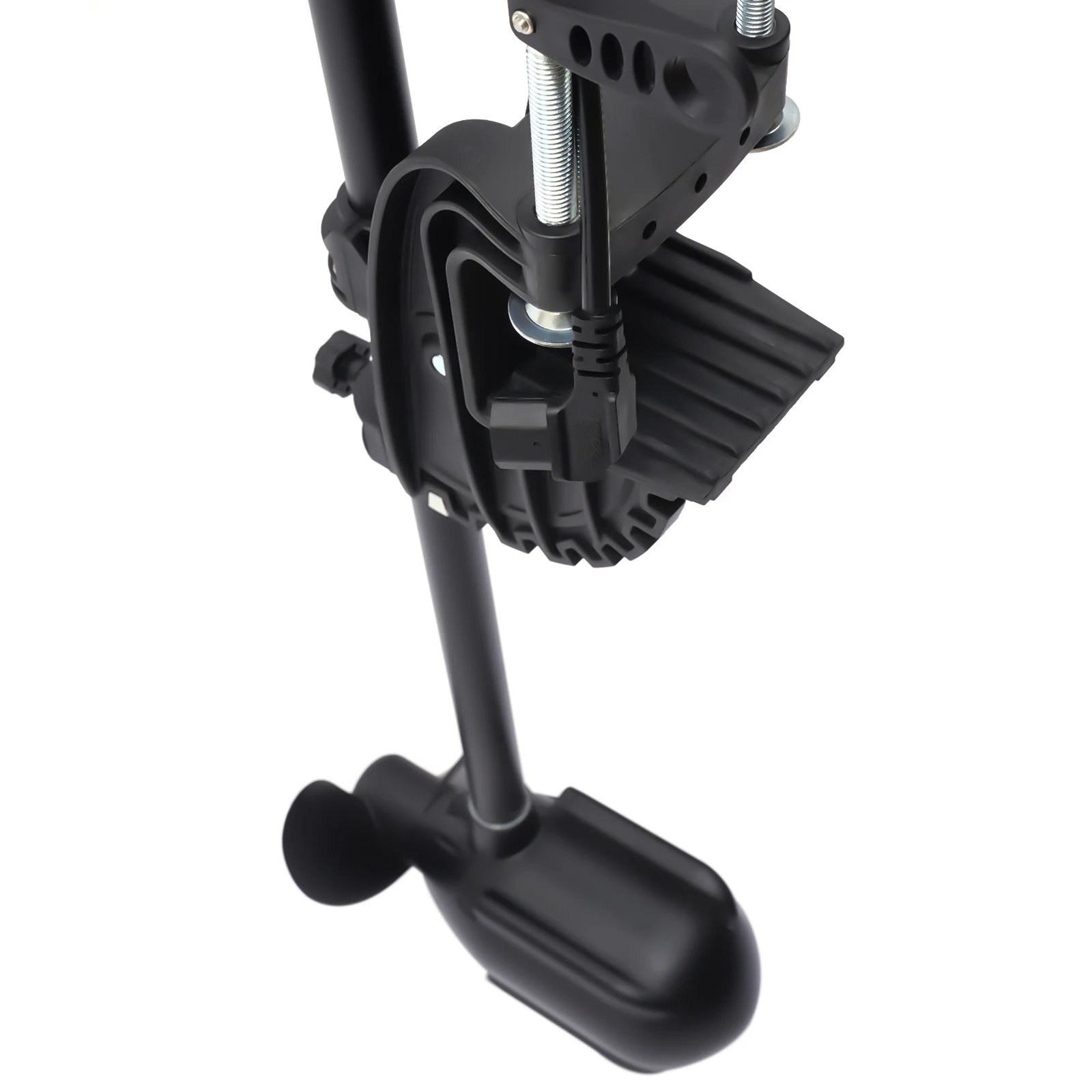

Adjustable Bracket: The plastic hung bracket is reinforced to be firm and durable. It can be adjusted to different heights to adjust its depth into the water, meeting different needs.

Application

It is suitable for kinds of boats with 13.1-22.96ft lengths such as inflatable boats, canoes, and aluminum fishing boats, widely used in fishing, aquaculture, outdoor adventure, fresh water and saline water area.

Specifications

Material: Aluminum Alloy, Copper, Iron, Plastic

Surface Treatment: Spray Painting

Color: Black

Operation Mode: Electric

Mounting Type: Transom, Engine

Starting System: Switch Knob Added

Motor Type: Brushless Motor

Plug: National Standard

Voltage: 48V

Maximum Power: 1400W

Speed: 2300rpm

Maximum Load-bearing Capacity: 1250-1500kg/2756-3307lbs

Net Weight: 11.5kg/25.35lbs

Gross Weight: 13kg/28.66lbs

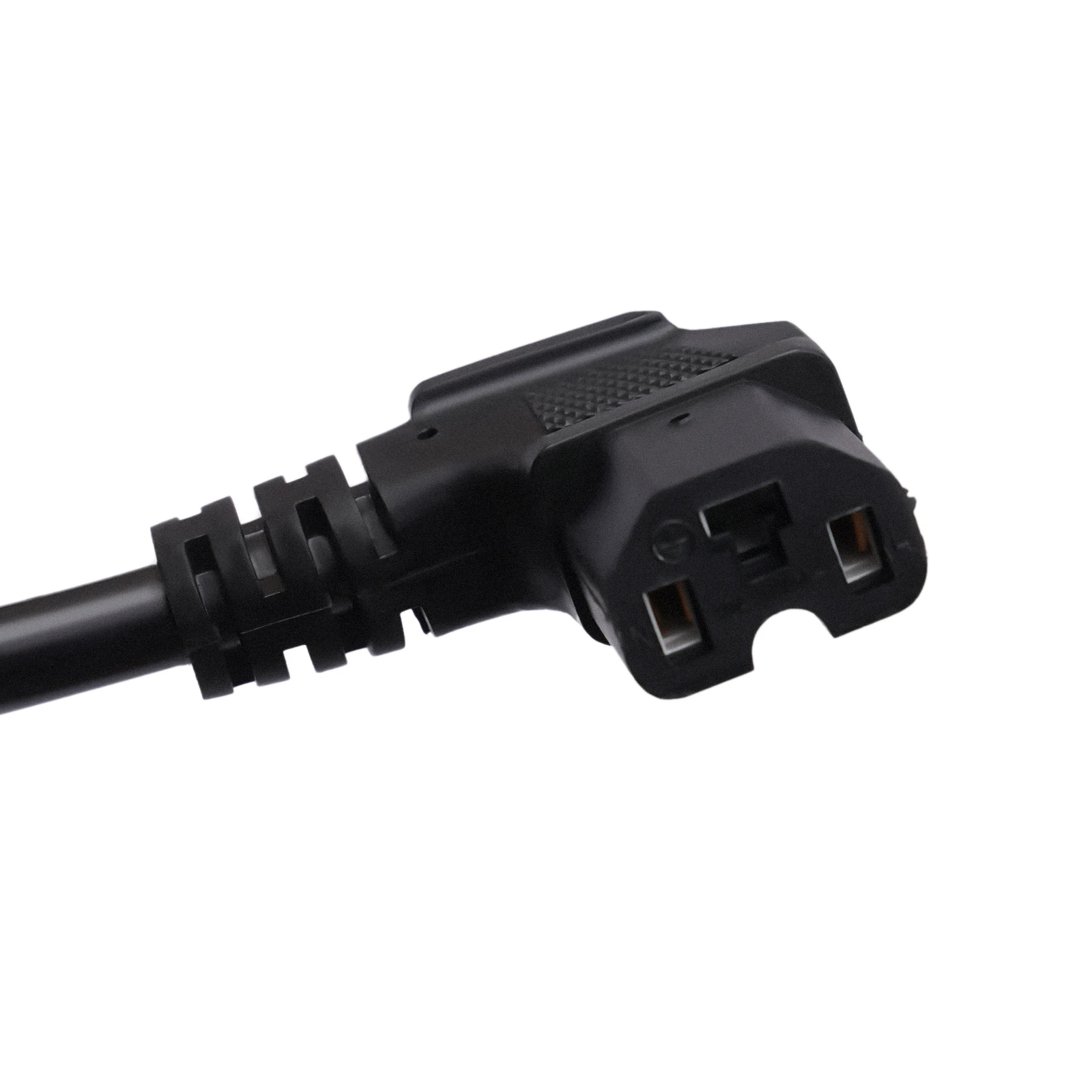

Battery Cables Length: 1.3m/4.3ft

Total Height: 1m/3.28ft

Handle Length: 44cm/17.32inch

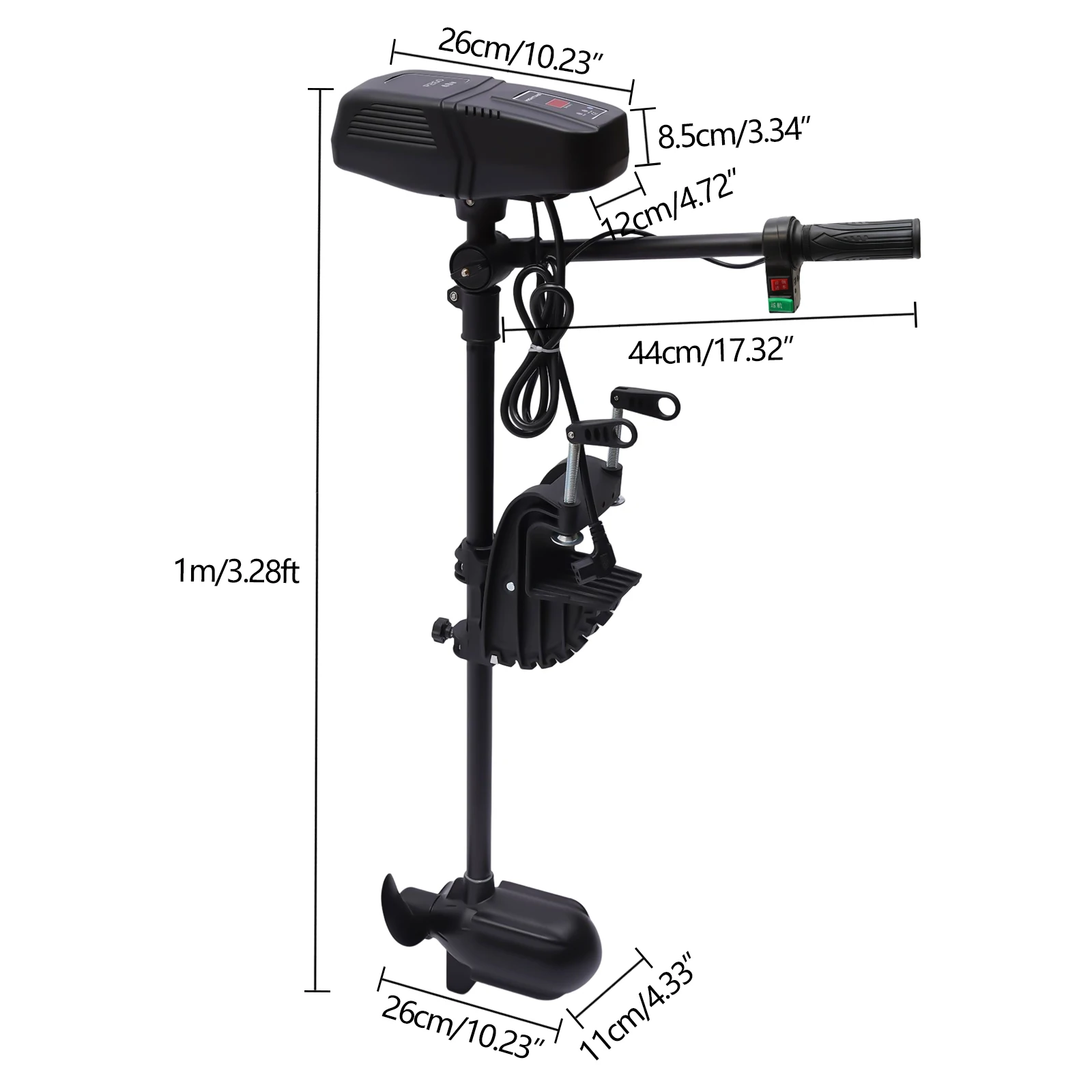

Machine Head Size: 26*12*8.5cm/10.23*4.72*3.34inch

Propeller Size(L&W): 26*11cm/10.23*4.33inch

Package Size: 116*40*17cm/45.67*15.75*6.7inch

Package Included

1* Electric Trolling Motor

1* Chinese Manual

Notes

1. The machine should be hung vertically in the middle of the stern plate. If the propeller is too deep, it will increase the assistance of water, thus reducing the thrust. If it is too shallow, it will make the propeller idle. The appropriate depth is between 15-20cm/5.9-7.87 inch.

2. The actual battery life depends on your battery.Speed depends on many factors such as load, water conditions, and wind speed. It is difficult to give an exact speed rating, and we will only give the approximate reference speed.

3. One 50ah 48V lead-acid deep cycle or lithium deep cycle battery (not included) is required. Do not use batteries above 48V and 100A.

4. The motor needs to be flushed with fresh water after each use, which can extend its service life.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
