Description

SPECIFICATIONS

Advantage 1: Boat MP5 Player

Advantage 3: Waterproof

Brand Name: ACCESTING

Hign-concerned Chemical: None

Model Name: 18415A

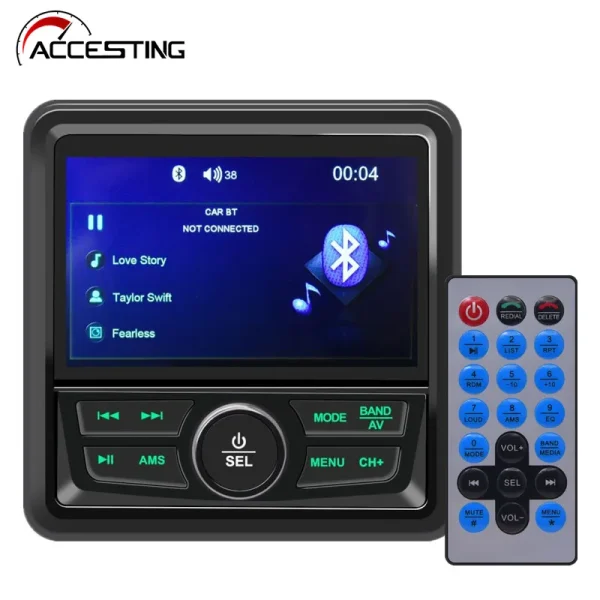

Name: Marine Stereo Radio

Origin: Mainland China

Model: 18415AMP5 waterproof player

Voltage: 12V

Applicable models: yachts, engineering vehicles, excavators, forklifts, trucks, cars, vans, etc.

Compatible formats: Compatible with MP5 Mp4 AVI MKV MP3/WMA, BT, USB, SD, FM

IF range: 10.7MHz

Power requirements: DC9V-12V

Available Sensitivity: 15dB

Load impedance: 4×4Ω

Signal to Noise Ratio: 50dB

Stereo separation: 30dB(1KHz)

Tone adjustment: ±8dB

Audio output: 2ch&4ch line out

Maximum output level: 1.5Vrms(±3dB)

Frequency Response: 20Hz-20KHz

Signal to Noise Ratio: 60dB

Separation: 50dB

Radio frequency band:

FM 87.5-108MHz

AM 522-1620KHz

Machine size: 110*110*74 cm

Installation size: 110*64*74 cm

Features:

Dustproof and waterproof

undamaged music

mobile phone fast charging

MP5 movies

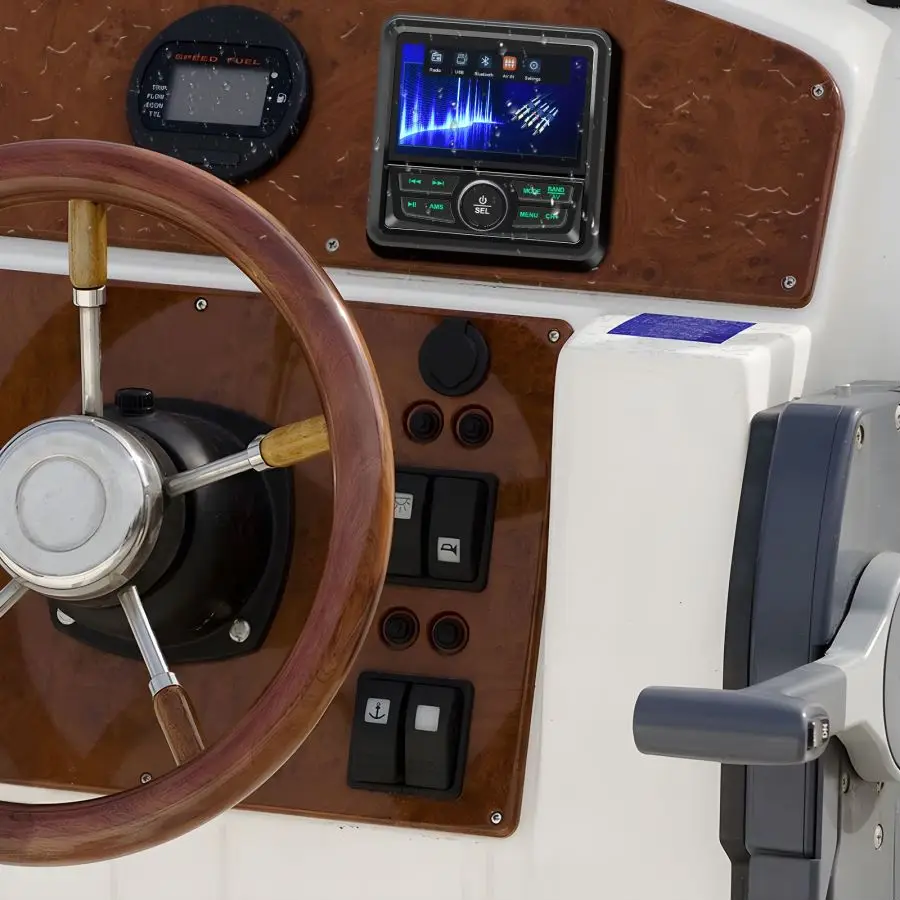

1. Yacht, ship, outdoor car, waterproof machine 12V

2. Support MP5 MP3 playback 4 inch TFT video output

3. supports rear view

4. 2.0USB interface supports USB

6. 4*50 output

Wiring details:

Yellow wire: B+ (connected to the positive pole of the DC battery);

Black wire: GND (connected to the negative pole);

Red wire: ACC (connected to the switch control, if there is no separate control wire, connect it with the yellow wire);

Pink wire: SWC1 (connected to the square control wire-mainly some new energy vehicles installed on the car);

Brown wire: BACKSIGHT-IN-CTL (connected to the square control wire-mainly some new energy vehicles installed on the car).

Note: The pink wire and the brown wire are used together. If you install the player on a boat, you do not need to connect these two wires. If you install it on a car, you need to connect them.
