Description

SPECIFICATIONS

Battery Capacity(mAh): 1600

Brand Name: quansheng

Certification: CE,FCC,RoHS,KC

Choice: yes

Dimensions: 115*60*37mm

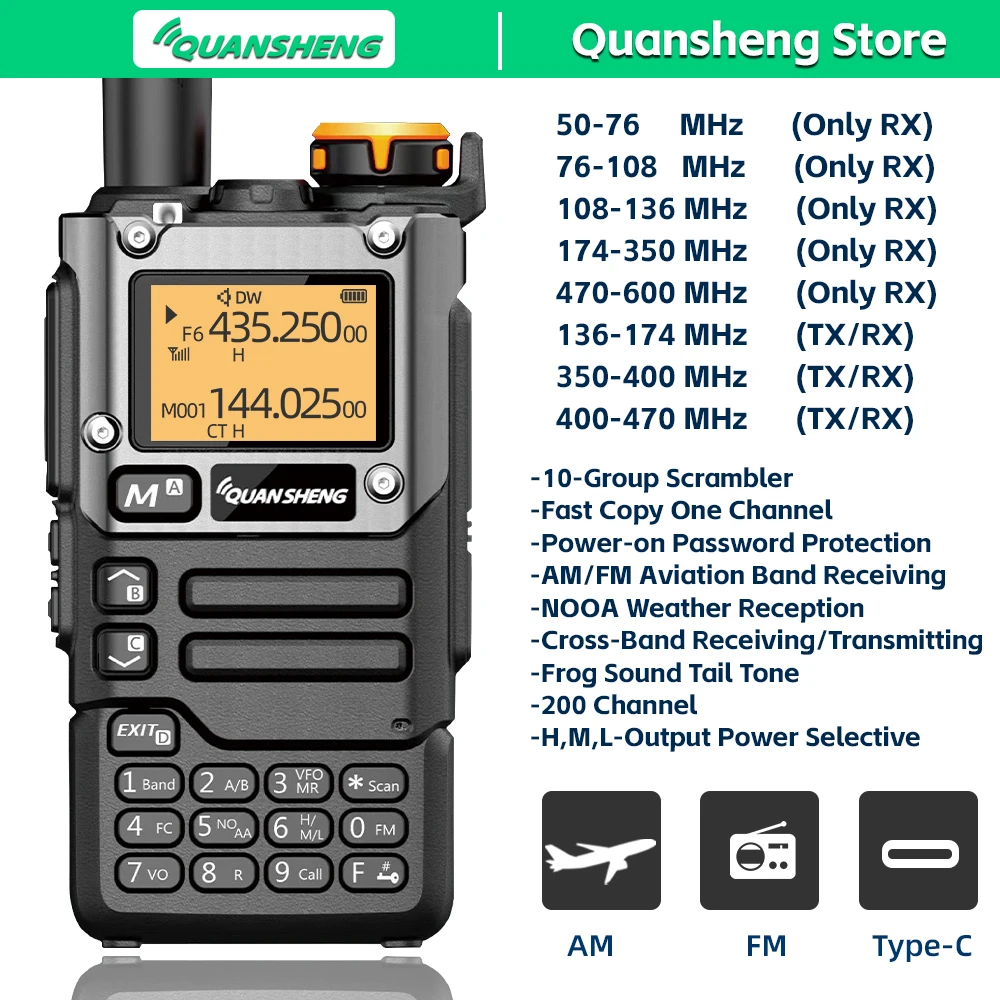

Frequency Range: UHF:400-470MHz/VHF:136-174MHz

Is_Display: Yes

Material: Plastic

Maximum Range: 3km-5km

Model Number: UV-K5(8)

Origin: Mainland China

Output Power(w): 3w-5w

Storage Channel: 200

Walkie Talkie Type: Portable

Waterproof / Water-Resistant: No

[ 200 Channel ] – [ Cross-Band Intercom ]

[ 1750HZ Call Tone ] – [ Program On Site ]

[ Emergency Alert ] – [ Reverse Frequency Function ]

[ 10-Group Scrambler ] – [ Multi-Scan ]

[ CTCSS/DCS ] – [ 10 Emergency Weather Channels ]

[ PC Programmable ] – [ Busy Channel Lock ]

[ VOX ] -[ Frequency And Channel Mode Shift ]

[ Time-Out-Timer ] – [ Wireless Radio Replication ]

[ Large LCD Display ] – [ Voice Prompt ]

[ Reminding Switch ] – [ Remote Kill/Revive ]

[ AM/FM Aviation Band Receiving ] – [ FM Radio ]

[ Offset Frequency Direction Set ] – [ Reset ]

[ Squelch Level Adjustable ] – [ Dual-watch opertion ]

[ Offset Frequency Setting ] – [ Channel Scan And Add ]

[ Automatic Signaling Search ] – [ Multi Step Frequency ]

[ One Key Call Channel ] – [ Keypad Lock ]

[ Backlight Auto Off Time Selective ]- [ Jacklight]

[ DTMF Calling ] – [ DTMF ANI ]

[ Wide/Narrow Bandwidth ]

[ Power-on Password Protection(By PC Programmable)]

[ Type-C And Charger-Base Charging ]

[ DTMF Select Call (single call, group call, all call) ]

[ Repeater Forwarding Confirmation Function ]

[ Multi Display Of Channel No./Channel Frequency/Channel Name ]

[ H (High)，M (Medium)，L (Low) Output Power Selective ]

[ Multi-Band Transmitting & 50∽600MHz Receiving ]

[ Receive/Transmit Code Setting Separately ]

[ High Capacity BatteryLong Standby Time ]

[ Fast Copy One Channel（ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES) ]

Large LCD Display.

The large screen is clear, intuitive,and good-looking,with a clean button layout and easy to understand operation.

DTMF.

Dual tone multi frequency signal , Simplefast and reliable transmission technology .

Many ways to scan .

Detect without knowing the frequency and ct/dcs used by the other party .

Cross-Band Receiving/Transmitting .

Fast Copy One Channel .

Act As Frequency Meter For Two-Way Radio & Some Other Devices .

F+4, Turn On Frequency Copy .

10-Group Scrambler .Encrypted Communication .

Multiple security encryption , Protect your call privacy and communication security .

Power-on Password Protection （By PC Programmable）.

Frog sound ending tone .

Frog Sound Tail Tone .

After the walkie talkie transmission is completed, the receiving console emits a "Frog sound " tail tone signal to indicate the end of the call .

NOOA weather reception .

10 Emergency Weather Channels .

Bring more convenience to your outdoor travel .

Multiple charging methods.

More choices, more convenient.

Support Type-C And Charger-Base Charging.

General Specifications:

Channel：200；

Stored FM Radio Channel Quantity：20；

NOAA Channel：10；

Frequency Stability：±1ppm；

Modulation Mode：FM:11KΦF3E(12.5KHz),16KΦF3E(25KHz)；

Dimension：115mmX60mmX37.5mm；

Weight：234g；

Operating Temperature：-20℃+60℃；

Antenna Impedance：50Ω；

RECEIVING:

Sensitivity：FM(12dB SINAD)；

F1(50∽76)：-121dBm

F2(108∽135.9975)：-121dBm

F3(136∽173.9975)：-123dBm

F4(174∽349.9975)：-123dBm

F5(350∽399.9975)：-123dBm

F6(400∽469.9975)：-123dBm

F7(470∽599.9975)：-121dBm

WFM(20dB SINAD)：WFM(76∽108)-110dBm

AM(10dB S/N)：F2(108∽135.9975)

Audio Frequency：≥0.5W

Audio Distortion：≤10%

TRANSMITTING:

Output Power：≤5W；

Emission Current：≤1.5A；

Max Frequency Deviation：≤5KHz(25KHz),≤2.5KHz(12.5KHz)；

Modulation Distortion：≤5%；

Stray Power：≤7.5uW；

Adjacent Channel Power：70dB(25KHz),60dB(12.5KHz)；

Residual Modulation：40dB；
